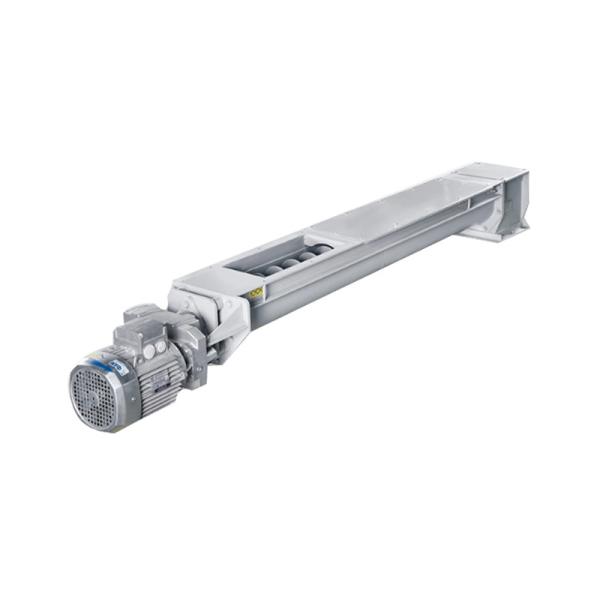

Powder Stainless Steel Shaftless Screw Conveyor Auger Feeding Spiral Conveyor for Oil Waste Sludge Conveying
Shaftless screw conveyors mainly for: sticky materials (sludge, mud cakes), entangling materials (living garbage, food waste), bulk materials (living garbage, etc.).
The shaftless screw conveyor developed by Longdai Environmental Protection Group has a novel and reasonable structure, advanced technicalspecifications, good sealing performance, strong applicability, low noise of the whole machine, convenient operation and maintenance, and flexible arrangement of inlet and outlet ports. According to different working conditions, different types of shaftless screw conveyors are selected.
Product Features
1, with environmental characteristics. Because the conveyor is a totally enclosed design, it is difficult for the material to receive contamination during the transport process.
2. Compared to the shaft screw conveyor, the delivery volume is 1.5 times that of the shaft conveyor with the same diameter.
3. Blockages rarely occur during work.
4, the transmission distance up to 60 ~ 70m.
5, generous appearance, while saving space, easy to operate, reasonable price.
Parameter
| arameters | spiral Nominal diameter (mm)
spiral dia (mm) | Type | LS-200W | LS-250W | LS-300W | LS-350W | LS-400W |
| 200 | 250 | 300 | 350 | 400 |
| 185 | 235 | 285 | 320 | 385 |
| Capacity | installation angle | 0° | 1.5 | 3.6 | 6 | 8.4 | 11.7 |
| 5° | 1.35 | 3.24 | 5.4 | 7.56 | 10.53 |
| 15° | 1.05 | 2.52 | 4.2 | 5.88 | 8.19 |
| 25° | 0.9 | 2.16 | 3.6 | 5.04 | 7.02 |
| Spiral speed n(r/min) | | 12 to 16 |
| Motor N(KW) | 0.75-5.5 (according to L and angle) |
| installation size(mm) | A | 0+40 |
| B | 0 + 110 |
| Bi | Matching with corresponding equipment |
| L | According to user requirements |
| Li | Matching with corresponding equipment |
| l_2 | (L-1000)/2-(L-71000)/3 |
| L3 | 250 | 250 | 300 | 350 | 400 |
| H | Matching with corresponding equipment |
| Hi | 140 | 165 | 188 | 210 | 240 |
| H2 | H-150 |
| H3 | | Matching with corresponding equipment |
Real Picture
Company Profile
Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.
Main business: "Petrochemical Wastewater Treatment, Urban and Rural Wastewater Treatment, Waste Gas Collection and Treatment, Industrial Wastewater Treatment, etc."
Main equipment: "Integrated treatment equipment, grille decontamination machine, sand water separator, mud scraper, air flotation device, dosing device, sludge thickener, rotary drum micro filter, conveyor, etc."
The technical team participates in technical exchange meetings every year, exchanges experience with professionals, continuously improves technical competitiveness, and provides customers with the clearest and most practical design solutions.
The processing team controls the manufacturing details of each equipment, and manufactures the most sophisticated and reliable equipment for customers.
The company has passed ISO9001-2008 international standard quality system certification.
We look forward to contacting you, please give us a chance. I hope we can trust each other for mutual benefit and win-win results.
FAQ
Q: What certificates do you have? A: CE/ISO/SGS
Q: Do you offer after-sales service?
A: Yes. Engineers available.
Q: How long is your warranty?
A: 2 years after the arrival of the goods. During this period, as long as it is not a man-made damage, we send the damaged parts free of charge.
Q: What about your delivery Time?
A: Normally within 45 days against down payment.
Q: What about the package of your export product?
A: We use anticorrosion wooden case with foam inside.
Q: What kind of payment do you accept?
A:T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM
